Unread post by boof » June 13th, 2007, 11:11 am

Ok I have done a bit of a search for some past posts on Hiluxs and 4Runners.

I am hoping it will be made a sticky and will eventually grow into a useful source of iinformation for people to look at. I guess its similiar to the bible on Outers.

If you have any threads to add just put what they are about and a link. We should also try not to put any chat in here as it isnt really necessary.

Hilux Dual Battery
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Turbo Information
Diesel
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Petrol
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Mechanical
Uni Joints
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Hubs
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Cooling systems
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Brakes
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Diffs
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Suspension
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

BJ Spacers

http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Body lift info
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Engine Conversion Info
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux

Tyres
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... ight=Hilux
http://www.4wdmonthly.com.au/forum/show ... hp?t=34727


A useful site for diff information

http://www.off-road.com/toyota/tech/other/4_axles.html





Lockers

http://www.4wdmonthly.com.au/forum/sear ... hid=191312
2014 FJ with a few mods

MRF-Dru
Been here a while
Posts: 309
Joined: October 19th, 2006, 1:32 pm
Location: Greenbank, Brisbane

Unread post by MRF-Dru » June 13th, 2007, 11:19 am

Good Idea Boof, save searching through all the pages :D
[align=center]2001 Toyota Landcruiser 50th Anniversary GXL Wagon 4.5L 6 Cylinder TwinCam[/align]

Celt's
Need to get out more
Posts: 5934
Joined: February 17th, 2006, 3:31 pm

Unread post by Celt's » June 25th, 2007, 1:42 pm

great work mate, just noticed it. Will definately be coming back for a squizz when i have a bit of time.:thumb:
[align=center][size=134][color=darkgreen]99 SR5 Dual Cab Lux[/color][/size][/align]

A1 Mech
Part of the furniture
Posts: 1797
Joined: May 7th, 2006, 10:24 pm
Location: Gold Coast

Unread post by A1 Mech » June 30th, 2007, 7:15 pm

changed my 4.3 diff centre to a 4.56 the sarvo so I thought I'd post up sum picks and show easy it is to change a diff.

First of all u want to jack up the rear and put on stands, then proceed to take off the rear wheels and disconnect brake lines (let fluid dribble into a dish) Also disconnect handbrake cable support on trailing arm (4runner/surf only)

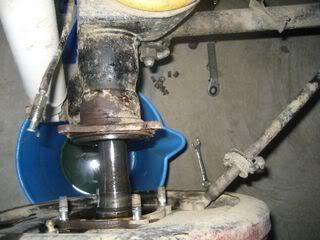

Then proceed to undo 4 axle flange nuts on the inside of the backing plate (can be tight so get a big lever). Axles will slide out with ease make sure to take care that brake lines dont get kinked or damaged.

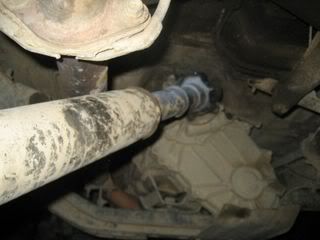

Then u wanna get under the car and undo the 4 nut & bolts fixing the tailshaft to the pinion flange, then give the tailshaft a gentle tap with a hammer and it will drop (position out of the way).

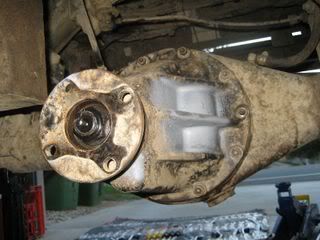

U then want to gently undo the numerous diff pumpkin studs and put the nuts and washers aside. To check that the axles are far enough out turn the pinion flange by hand and ther shud be no drive transmitted to drums.

When all the nuts are off push the pinion flange and then pull it down to break the seal (oil will piss out if not already drained so be ready for it) And also the diff centre weighs alot so be ready to grab it or guide it to sumthin soft.

A1 Mech
Part of the furniture
Posts: 1797
Joined: May 7th, 2006, 10:24 pm
Location: Gold Coast

Unread post by A1 Mech » June 30th, 2007, 7:16 pm

new 4.56 centre, only bummer is its an open diff (not for long ;) )

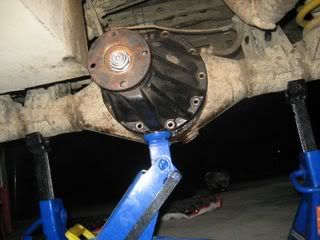

Align and guide in replacement centre using jack to lift it into place. It shud slot in with ease and then proceed to do up stud nuts just as u wud your wheel nuts (opposites). bolt up driveshaft, Refit axles and tighten flange nuts and refit hand brake supports and brake lines. The hardest part of this whole exercise is bleeding the brakes which really isnt that hard anyway. O and remember to refill with clean oil

Now next time u detonate a crown wheel dont pay sum thief mechanic a fortune to fix it, do it urself for the price of a $250-$300 diff and save your coin.

A1 Mech
Part of the furniture
Posts: 1797
Joined: May 7th, 2006, 10:24 pm
Location: Gold Coast

Unread post by A1 Mech » June 30th, 2007, 7:17 pm

Went for a quick test drive and even the change from 4.3 to 4.56 makes a big difference in the way my car drives, she takes off like a rocket and doesn't hesitate as much when taking off on hills, I can now pull up our local hill in 3rd rather in crawling in 2nd so pretty happy with it. Also I hav lower gearing in low range now also.

A1 Mech
Part of the furniture
Posts: 1797
Joined: May 7th, 2006, 10:24 pm
Location: Gold Coast

Unread post by A1 Mech » June 30th, 2007, 7:17 pm

Ok well today I played sum more mechanics. This is how u remove an IFS front diff. The re install in my truck will come later (I need to do sum more research, anyone got that link to the instructions on here or downunder?).


First of all u need a mate with a written off surf. This surf had a VG30 (300Z 6cyl turbo) and went like hell till it run up the back of a truck.

Then wat u need to do is undo the 6 nuts on the ends of the CV's which hold the CV's to the diff housing section. Also loosein off the 2 vertical diff mounting bolts and the forward mounting bolt. In the case of this surf it was easy access as the motor is gone, the bolts wer bloody tight so i used a big bar and hammer. It also had a heap of vacuum lines and electrics to undo due to the ADD on the surf.

Give it a kick and wiggle around and mission accomplised BEWARE this is even heavier then the rear centre so dont let it fall on a limb, Im not looking forward to fitting it up in my truck as it will be more time consuming, but I will get pics when I do and post them up. Cheers




p.s Image
This was a truck my mate has been workin on, I no wer Ill be taking mine to have one of these babys fitted.

Twisty
Moderator
Posts: 6599
Joined: August 25th, 2003, 1:41 pm
Location: Sunshine Coast, QLD

Unread post by Twisty » July 1st, 2007, 10:55 am

Patrol Bonnet Scoop Install (see page 2)
http://www.4wdmonthly.com.au/forum/f10/ ... ndex2.html

Blinging up your bullbar with clear indicators and 100mm driving lights.
http://www.4wdmonthly.com.au/forum/f10/ ... tall-7237/

IFS Bashplate Plans/Install
http://www.4wdmonthly.com.au/forum/f10/ ... late-7238/

Tool Identification Guide
http://www.4wdmonthly.com.au/forum/f21/ ... uide-6950/

Slider Mounts
http://www.4wdmonthly.com.au/forum/f10/ ... ssis-6797/
