Hi mate,
If your going to make a double axle what rating (weight) are you thinking about?
I am currently building my trailer with a single piece chassis and drawbar, but unless you have good knowledge about design and a bit of trailer building experience I would suggest a design that has a box section with suspension underneath and an independant drawbar underneath it running to the front of the suspension mounts.
I would run the 100x50x3 vertically from the hithc to the front of the suspension and then consider a third piece of RHS running from the back of the hitch down the centre of the trailer to at least the middle of the two axles.
Using 100x50x3 for all of the underside of the box is really overkill, and its going to get really really heavy really quick. Its great for the drawbar, especially if your going to put a toolbox on there later but for the whole underside its more then I have previously used on car trailers.
When you bend the steel to make a one piece chassis and drawbar, you are reducing the strength especially at the out where you bend it (assuming a cut trianlge section out and re weld) even if you gusset the crap out of it with 8-10mm plate its still not the best design.
Sorry for the confusing order of those paragraphs, I have been working all night.
If your going to make a double axle what rating (weight) are you thinking about?
I am currently building my trailer with a single piece chassis and drawbar, but unless you have good knowledge about design and a bit of trailer building experience I would suggest a design that has a box section with suspension underneath and an independant drawbar underneath it running to the front of the suspension mounts.
I would run the 100x50x3 vertically from the hithc to the front of the suspension and then consider a third piece of RHS running from the back of the hitch down the centre of the trailer to at least the middle of the two axles.
Using 100x50x3 for all of the underside of the box is really overkill, and its going to get really really heavy really quick. Its great for the drawbar, especially if your going to put a toolbox on there later but for the whole underside its more then I have previously used on car trailers.
When you bend the steel to make a one piece chassis and drawbar, you are reducing the strength especially at the out where you bend it (assuming a cut trianlge section out and re weld) even if you gusset the crap out of it with 8-10mm plate its still not the best design.
Sorry for the confusing order of those paragraphs, I have been working all night.
'98-'06 - FJ-45 Ute fell over one day and didnt survive
'06-now - HJ-47 Troopy, restored and now daily driver.
'13-now - HJ-47 Ute, Farm fresh rust bucket, needs a restoration. viewtopic.php?f=22&t=152811
now - Off Road Box/Camper Trailer. viewtopic.php?f=134&t=153968&p=1792444#p1792444
Dont listen to me, Ive got an opinion on everything!
'06-now - HJ-47 Troopy, restored and now daily driver.
'13-now - HJ-47 Ute, Farm fresh rust bucket, needs a restoration. viewtopic.php?f=22&t=152811
now - Off Road Box/Camper Trailer. viewtopic.php?f=134&t=153968&p=1792444#p1792444
Dont listen to me, Ive got an opinion on everything!
-
- Been here a while
- Posts: 334
- Joined: January 2nd, 2010, 5:43 pm
- Location: Cowra, NSW
Re: Home-made gear/accessories, post yours!!!!
Will have a 2-2-5 ton gtm. This is bout the 4th trailer ill b building. Couple of small bike trailers and most recently a 5mx2.2m bike trailer to house 5-6 bikes and all the gear.

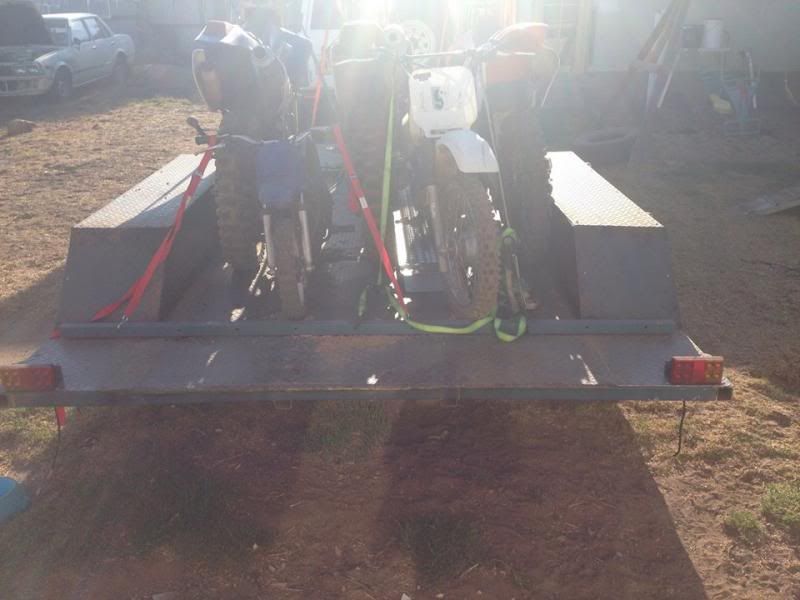

i have cut up this trailer and using it to help build the new camper. Taking the camper trailer, bike trailer and 2 cars away every trip got expensive. So needed to combine into one. New trailer will be 4.2m long and 1.9m wide. Rectangle section is 8x4 but box trailer section will be 7x4 using the extra 1ft at the front to mount the 2 big bikes. I will then have the 85cc mounted on the drawbar being the only weight put on the drawbar. A lift up frame ontop will hold a toolbox and behind that the 2 pw50's. Built it strong to hold the extra weight of the bikes and gear. Fully loaded trailer should be under 2t as the bikes weigh less then 300kgs collectively. Dual axle will help with distributing the weight and holding the extraweight. When we take the bikes of the toolbox can be mounted in place of the bikes.
