My scratch built 40 series trailer. ( project TOW40 )

Whether it's brand new and stock, or customised for your needs, show us what you tow!
Corey 5
Been here a while
Posts: 166
Joined: August 22nd, 2010, 9:07 pm
Location: Sydney, NSW

Re: My scratch built 40 series trailer.

Unread post by Corey 5 » October 9th, 2013, 9:27 pm

So jealous of this!! Looks awesome mate, keen to see it finished. Keep it up :D
Bj40 - 1980, 33" BFG Mud Terrain, Disk Brakes, Modified Suspension
Hj45 - 1980, Currently being built with a 12HT, 5 Speed, Power Steering, Disk Brakes, Rear Air Locker, 35" Muddies, Engineered, Complete respray including chasis
http://www.4wdaction.com

Aaron Schubert
Need to get out more
Posts: 4682
Joined: November 9th, 2009, 7:32 pm

Re: My scratch built 40 series trailer.

Unread post by Aaron Schubert » October 11th, 2013, 10:20 pm

What a beast. Looking forward to the end result!

Aaron
Looking for somewhere to go 4WDing in WA? Check out WA 4WD Tracks

My 80 Series Landcruiser

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer.

Unread post by croozy » October 21st, 2013, 6:02 pm

Thanks Corey & Aaron. Thought I might've got another go at on the weekend but I wasn't lucky enought to even open the shed. so maybe next weekend then.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer.

Unread post by croozy » October 26th, 2013, 3:03 pm

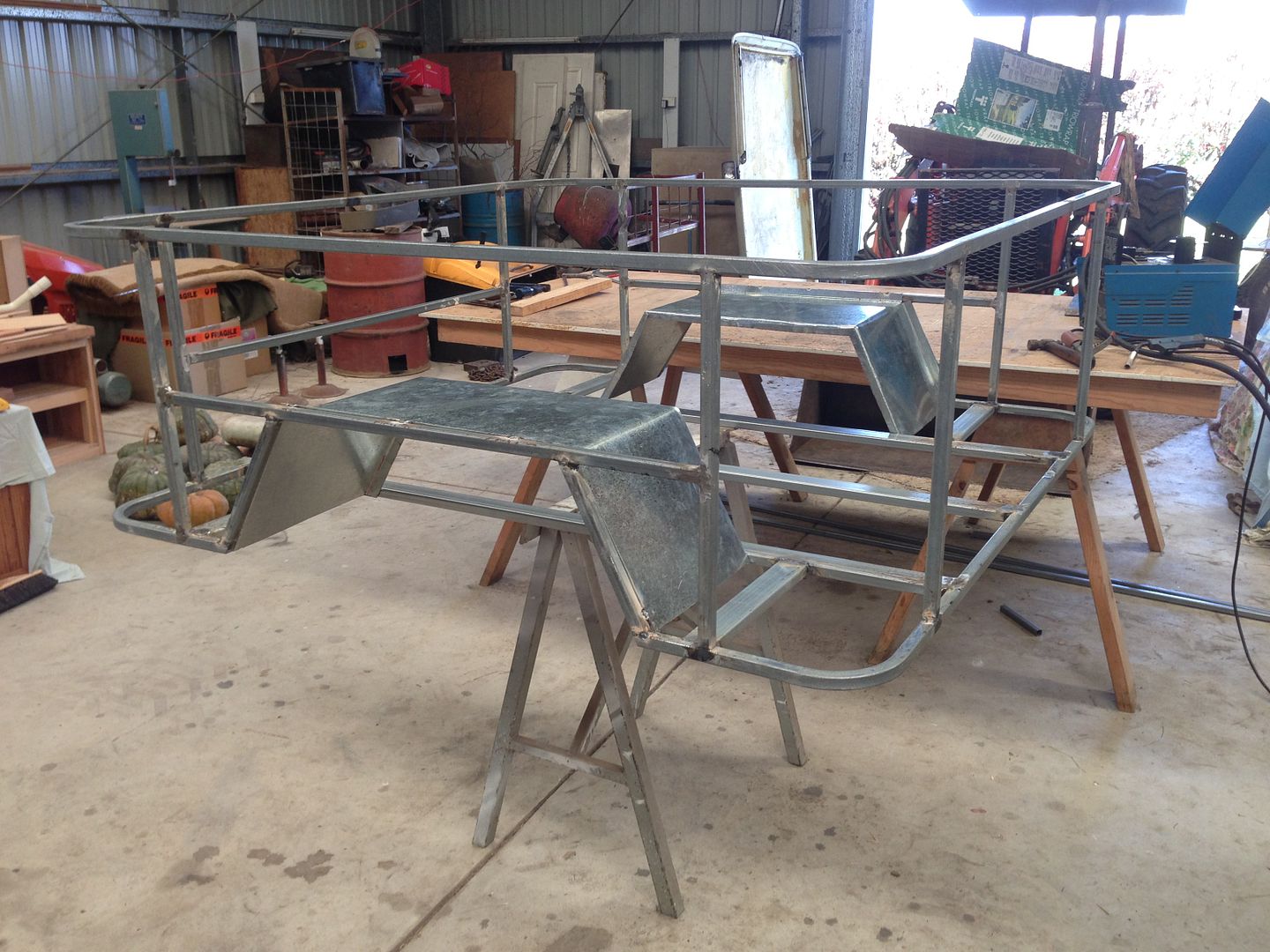

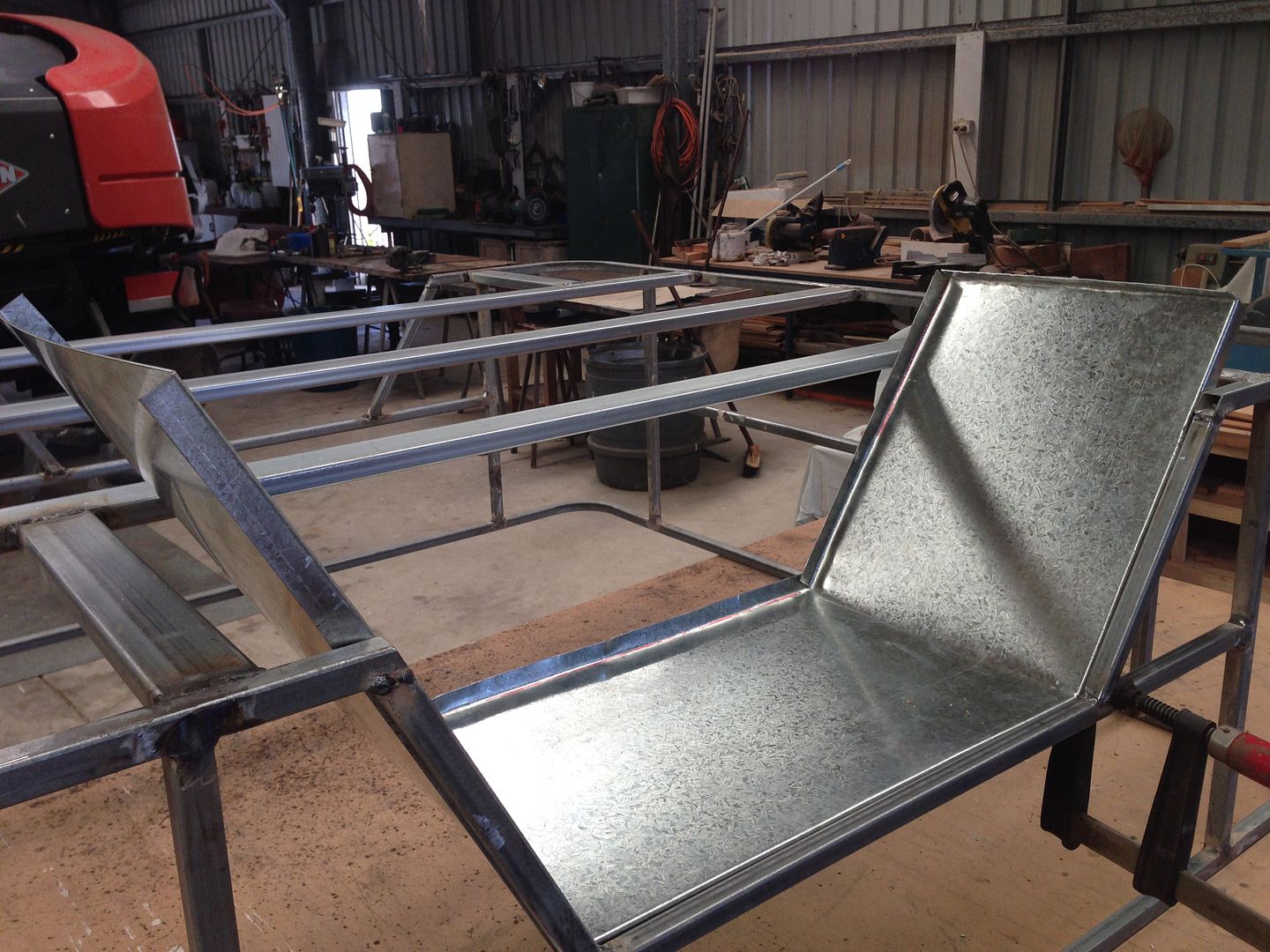

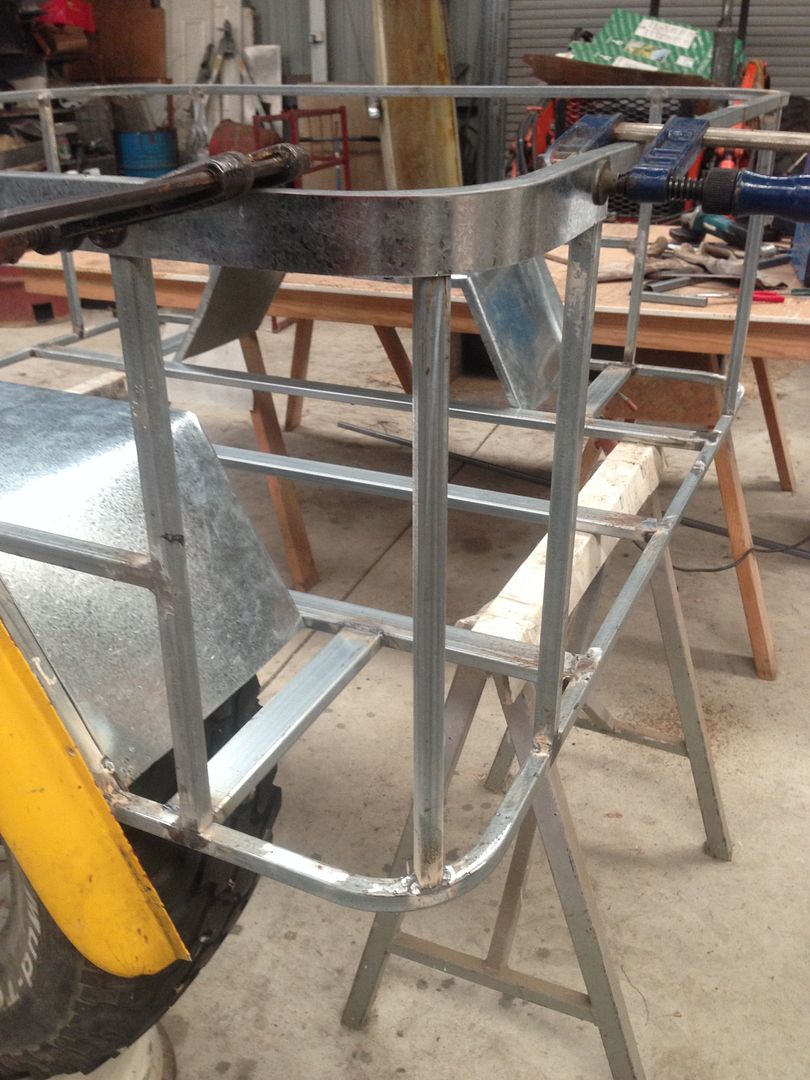

Had a bit of spare time today so I thought I'd make up the mudguards for the trailer.
I had to do it the hard way though.
By hand.


I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer.

Unread post by croozy » October 26th, 2013, 3:08 pm



I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

oversite
Need to get out more
Posts: 2499
Joined: January 30th, 2012, 3:41 pm
Location: Armidale, NSW

Re: My scratch built 40 series trailer.

Unread post by oversite » October 27th, 2013, 10:50 pm

Looking good.

You have some good metal working skills, whats your trade? (If you dont mind me asking)

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer.

Unread post by croozy » October 28th, 2013, 11:45 am

Thanks mate. I don't have any sort of trade at all. Just an average bloke.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

oversite
Need to get out more
Posts: 2499
Joined: January 30th, 2012, 3:41 pm
Location: Armidale, NSW

Re: My scratch built 40 series trailer.

Unread post by oversite » October 28th, 2013, 12:07 pm

mate, Im the same you are just a few years ahead of me in skill. keep building and I may have to steal your idea one day!

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer.

Unread post by croozy » October 28th, 2013, 8:13 pm

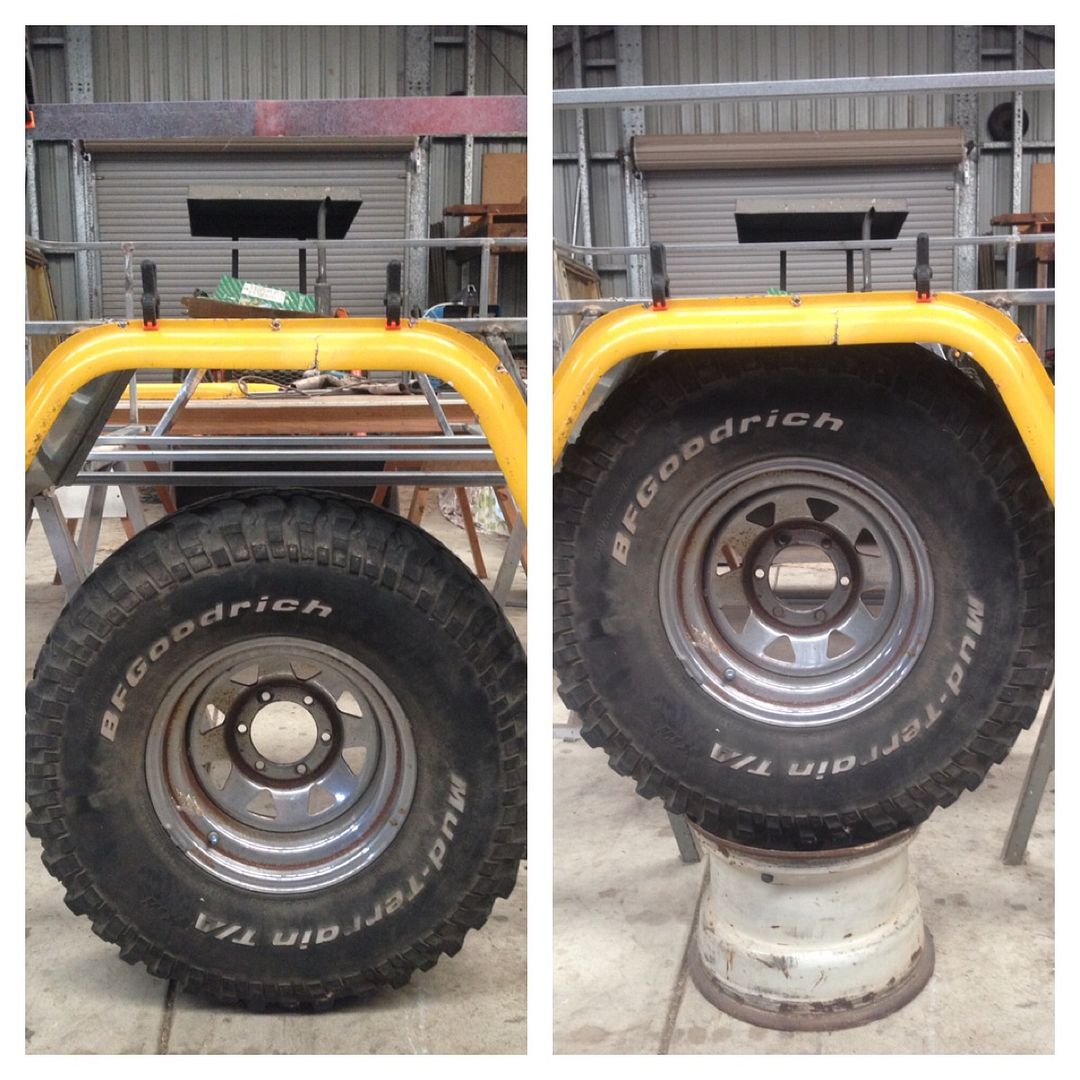

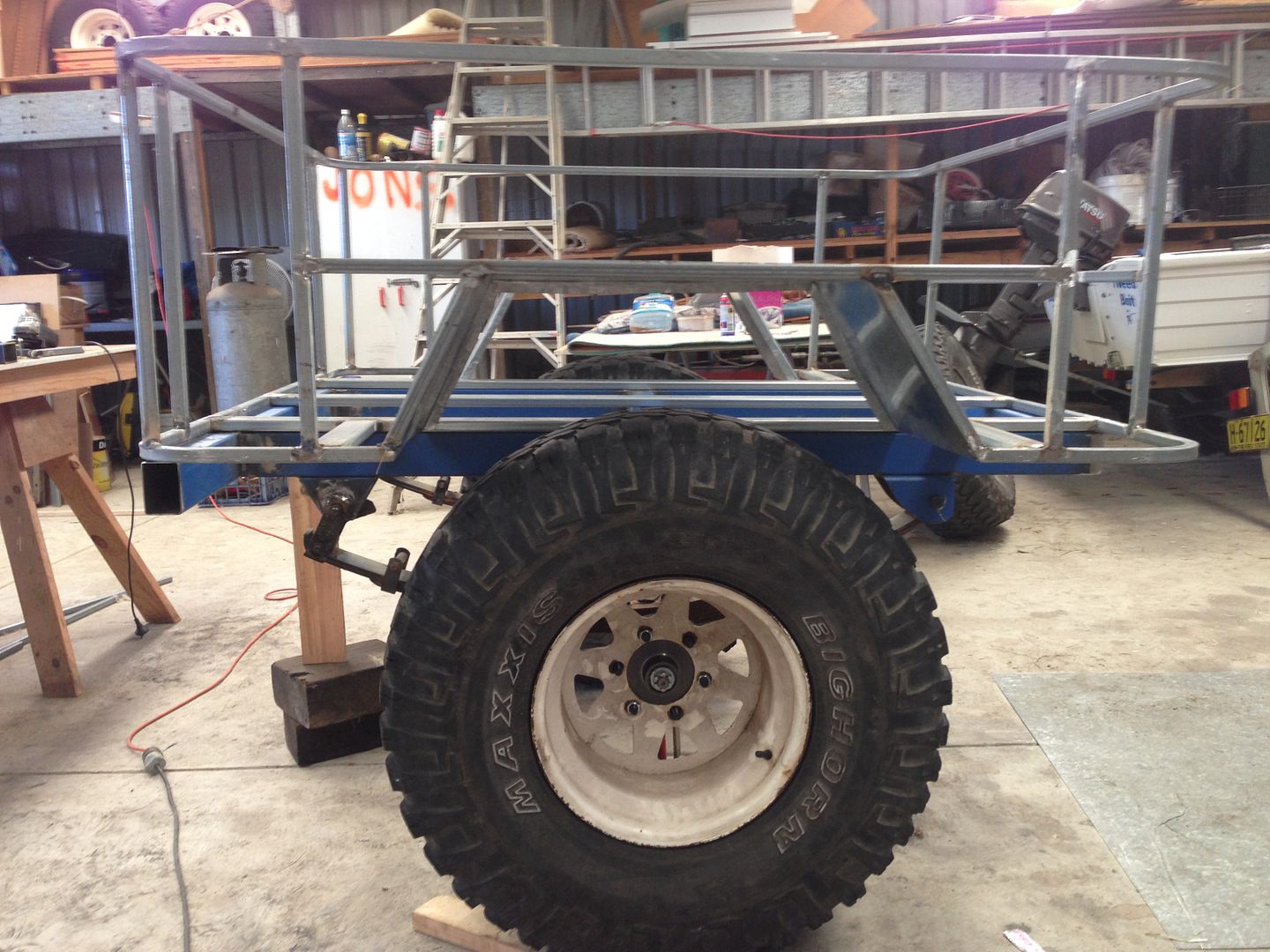

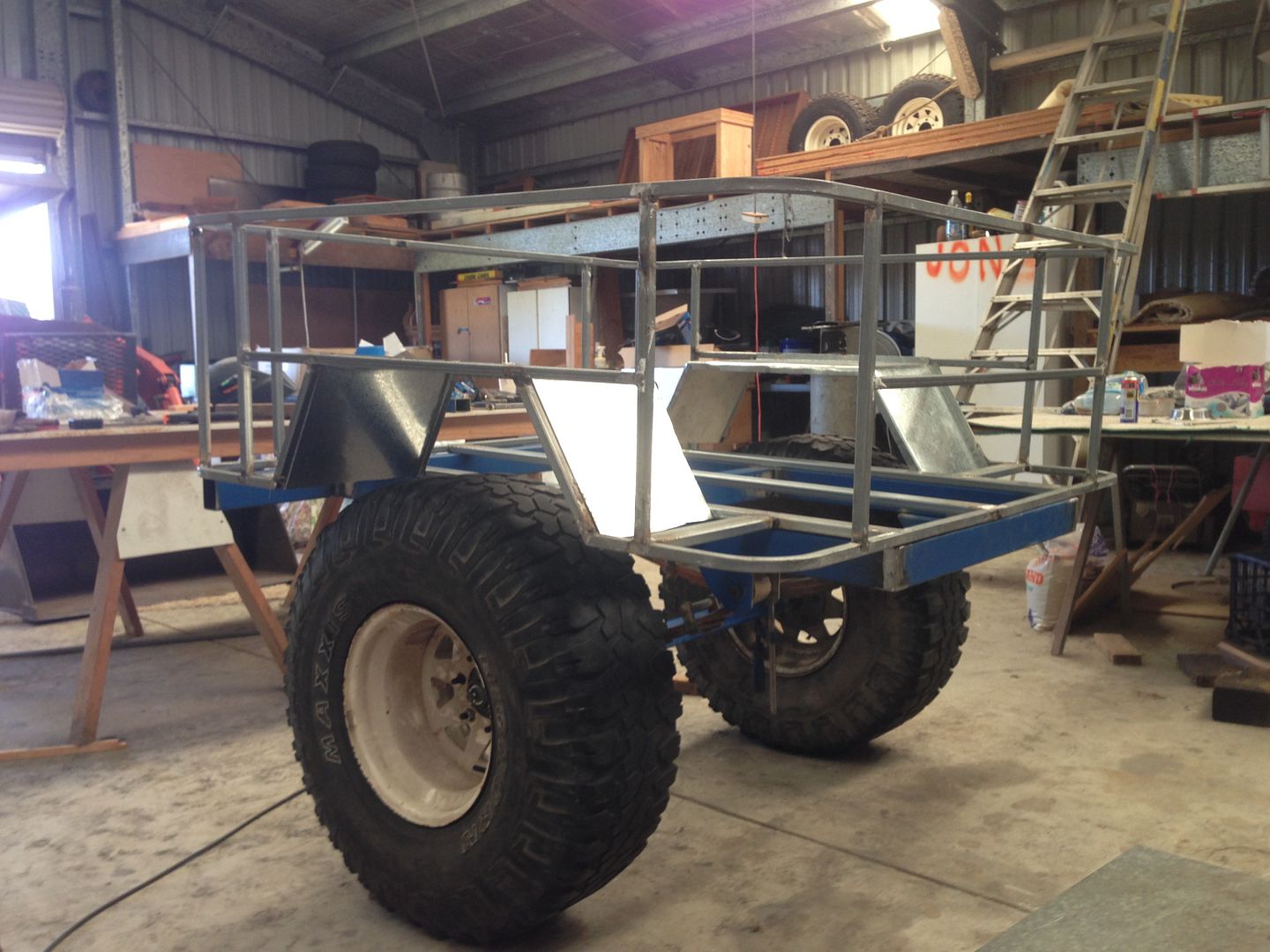

I went out to do a bit more today on it. I decided to have a bit of a play to work out my wheel travel.
Where it sit now it will have 9" of up travel. I originaly wanted it to sit the same height as the rear of the shorty & it is still 2" lower then the rear of the car. But I will see if it needs to go higher or not.

Then I had a crack at puting more work into the body. I welded some more panel supports in until my mig went on the fritz & wouldn't work. So I spent the rest of the arvo fixing the bloody welder.
Last edited by croozy on November 3rd, 2013, 7:45 am, edited 1 time in total.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

monkeybucket
Part of the furniture
Posts: 1949
Joined: April 23rd, 2012, 10:45 am
Location: WA

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by monkeybucket » October 30th, 2013, 11:25 pm

Got some skills there croozy... Nice work on the guards... really startin to take shape. :)
Cheers
Chris.

Off road when I'm good...in the shed when I'm naughty.

South West All Terrain ... www.swat4x4.com

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by croozy » October 31st, 2013, 5:27 pm

Thank you Mr Bucket. Going to try and start the chassis next I think. That way I can work out where the mounts between the body & the chassis will go.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by croozy » November 1st, 2013, 5:47 pm

I had the day off work today so what better way to spend it then doing more on the trailer.

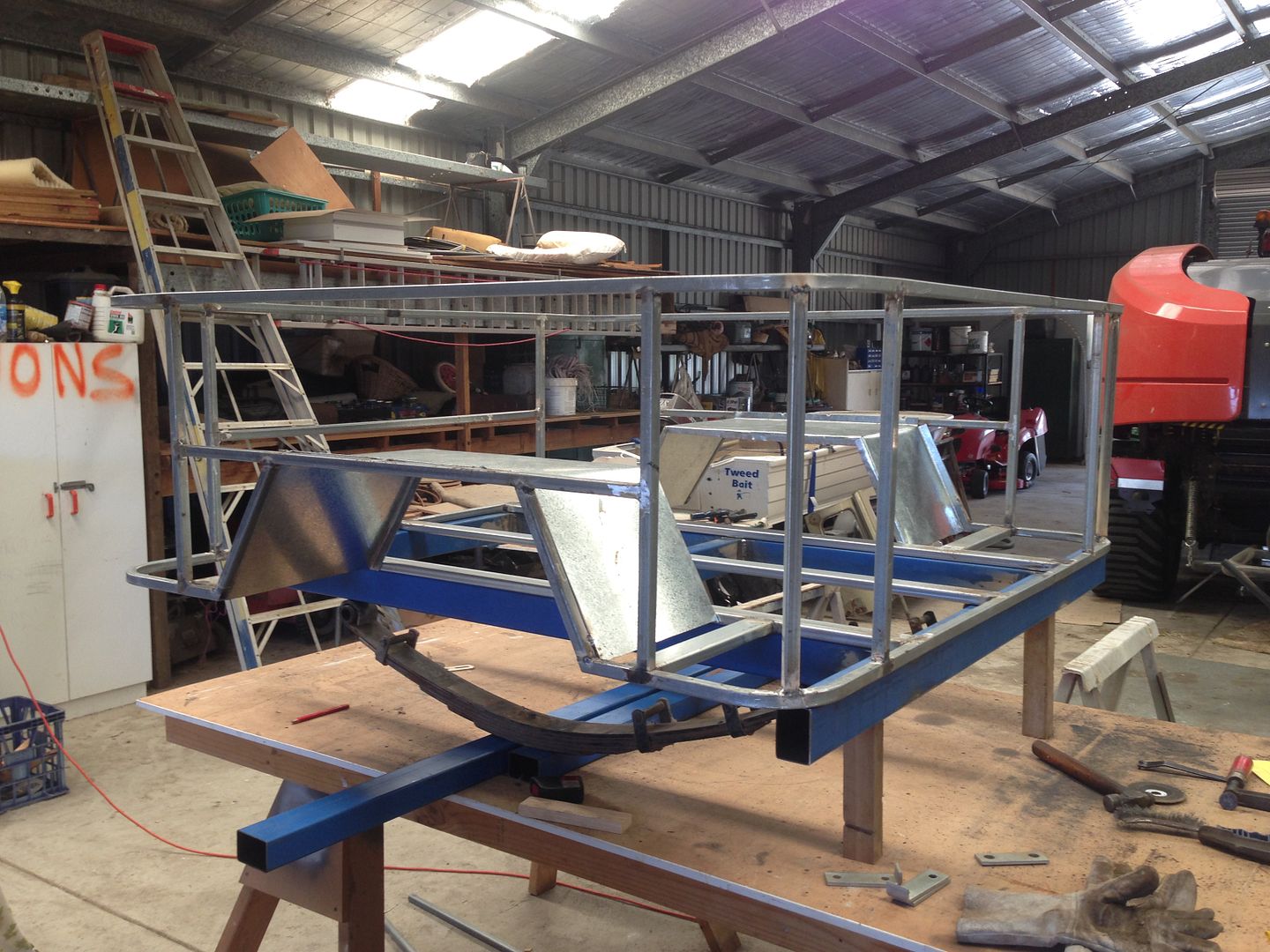

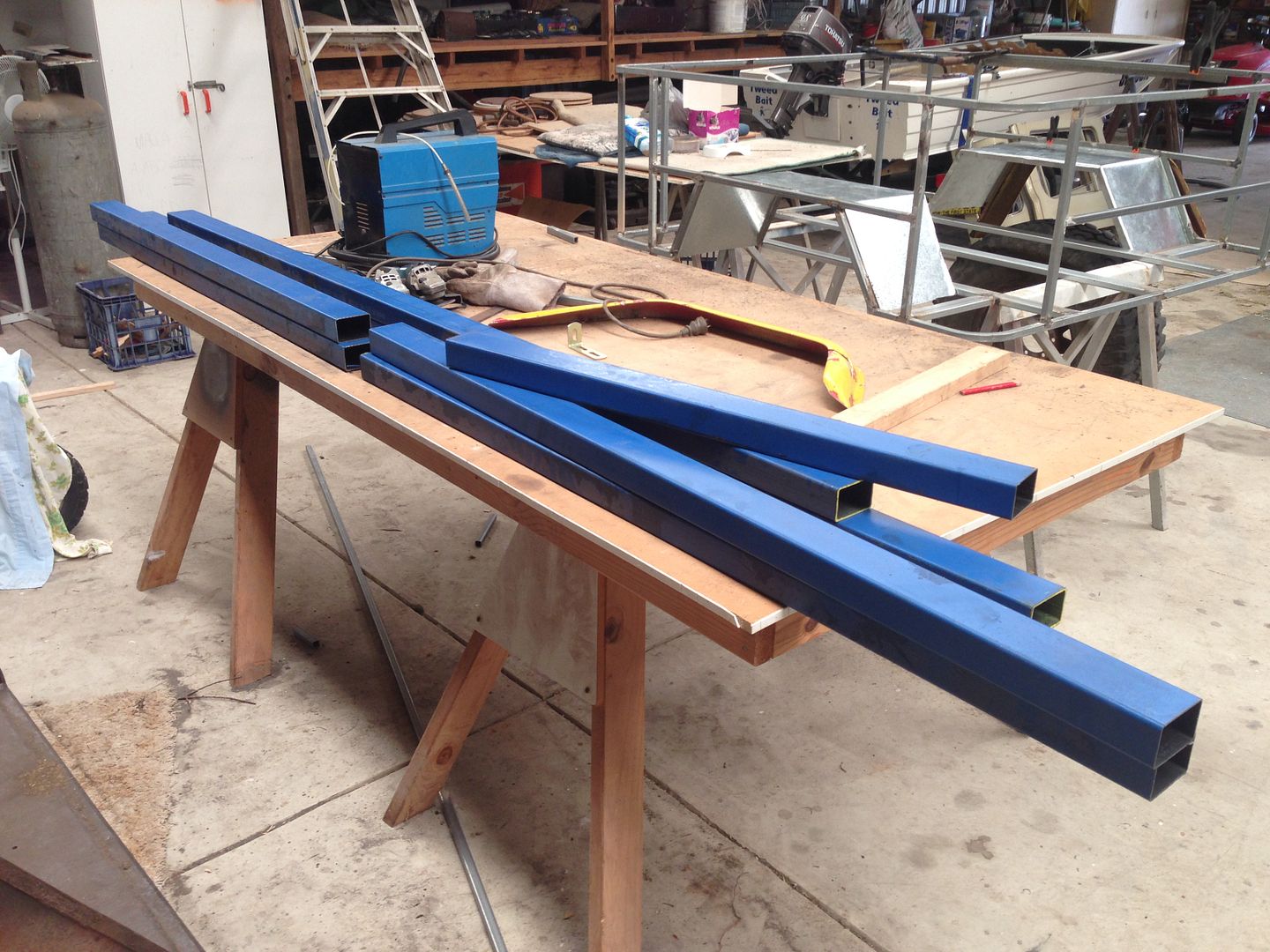

I got some steel delivered & started measuring & cutting up the pieces for the chassis.

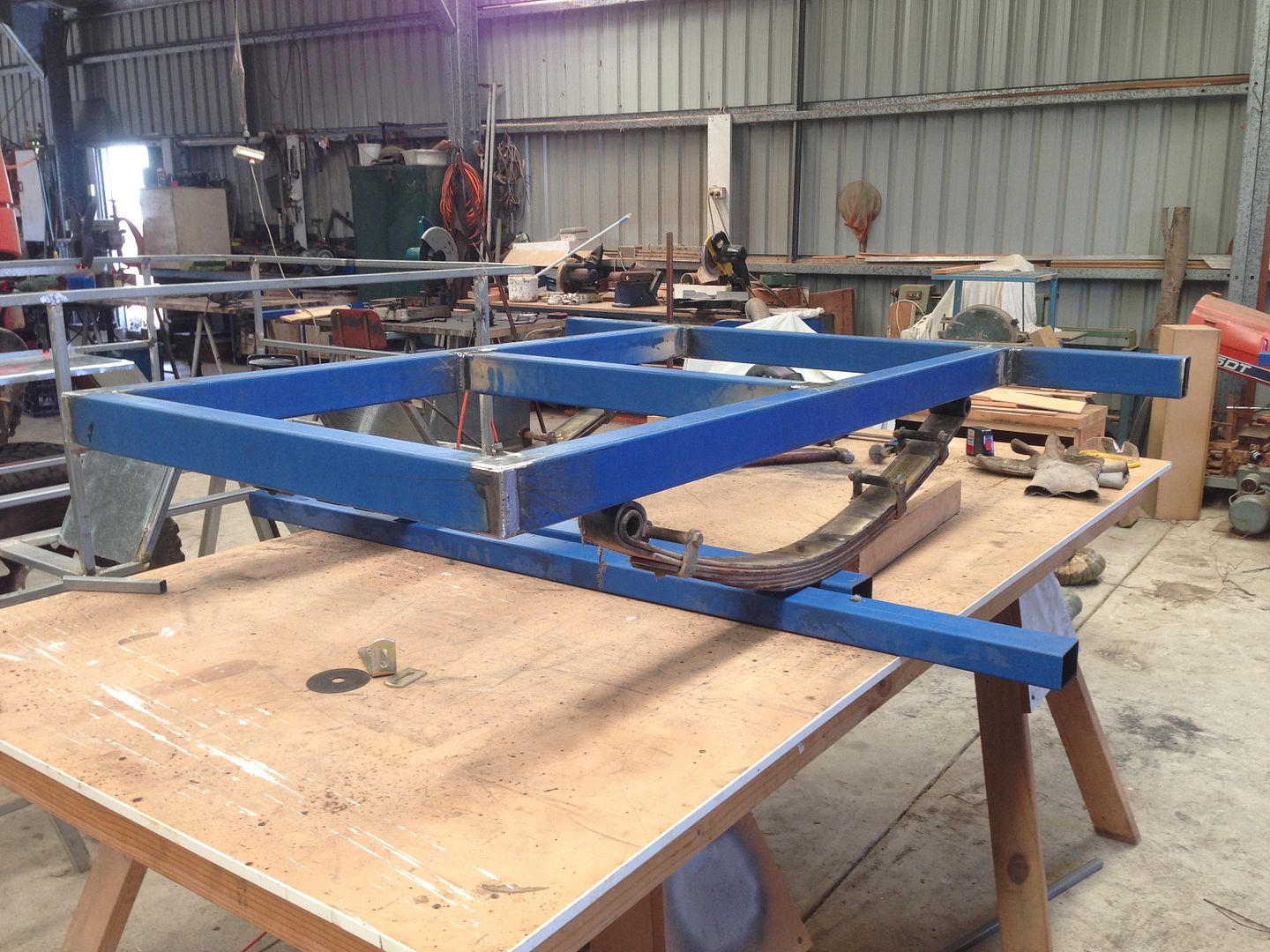

I got most of the chassis welded up & just need to fit the drawbar in.

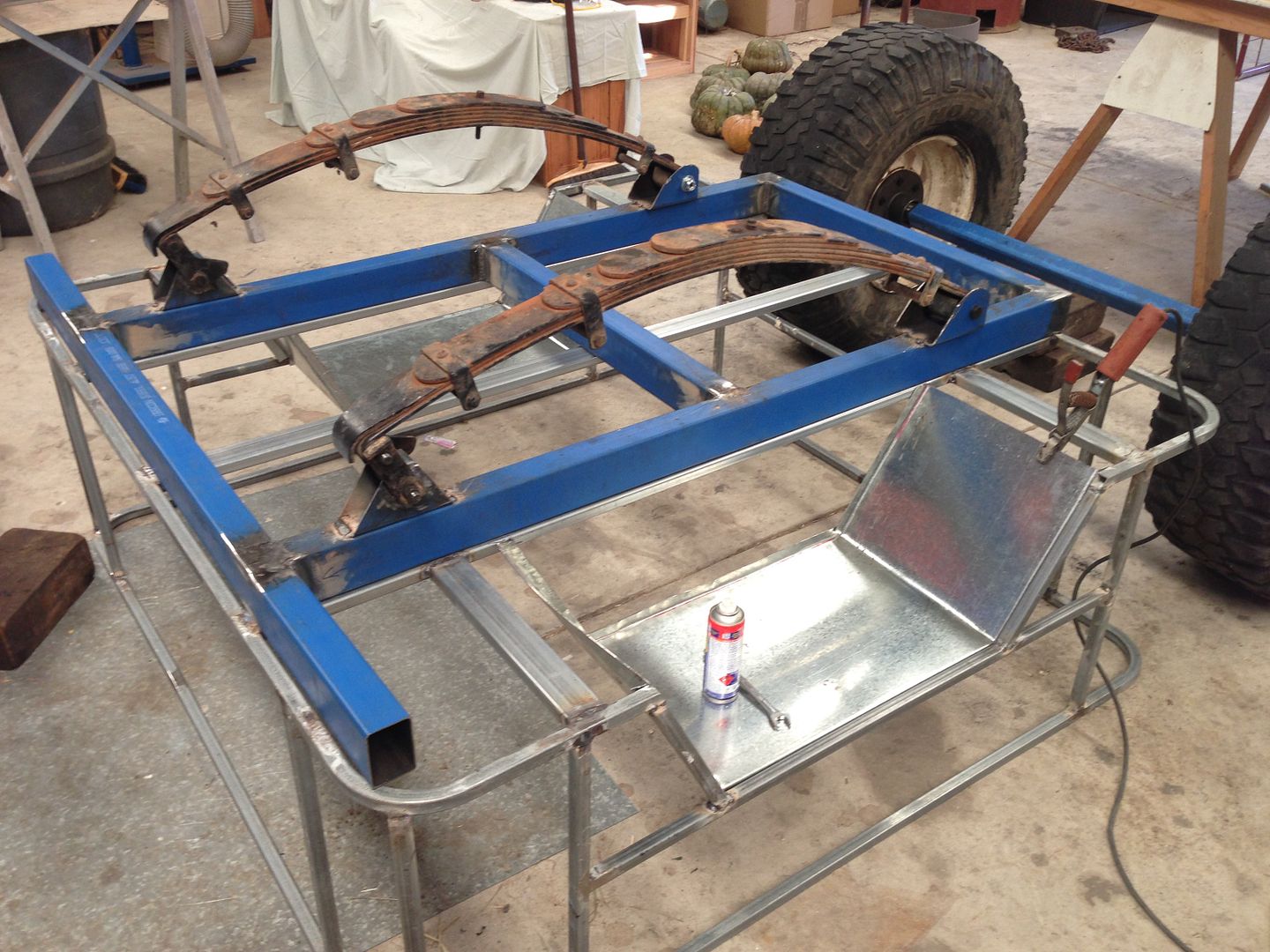

Next I set it all up on my workbench & put the springs I'm using under it to work out where the axle will sit.

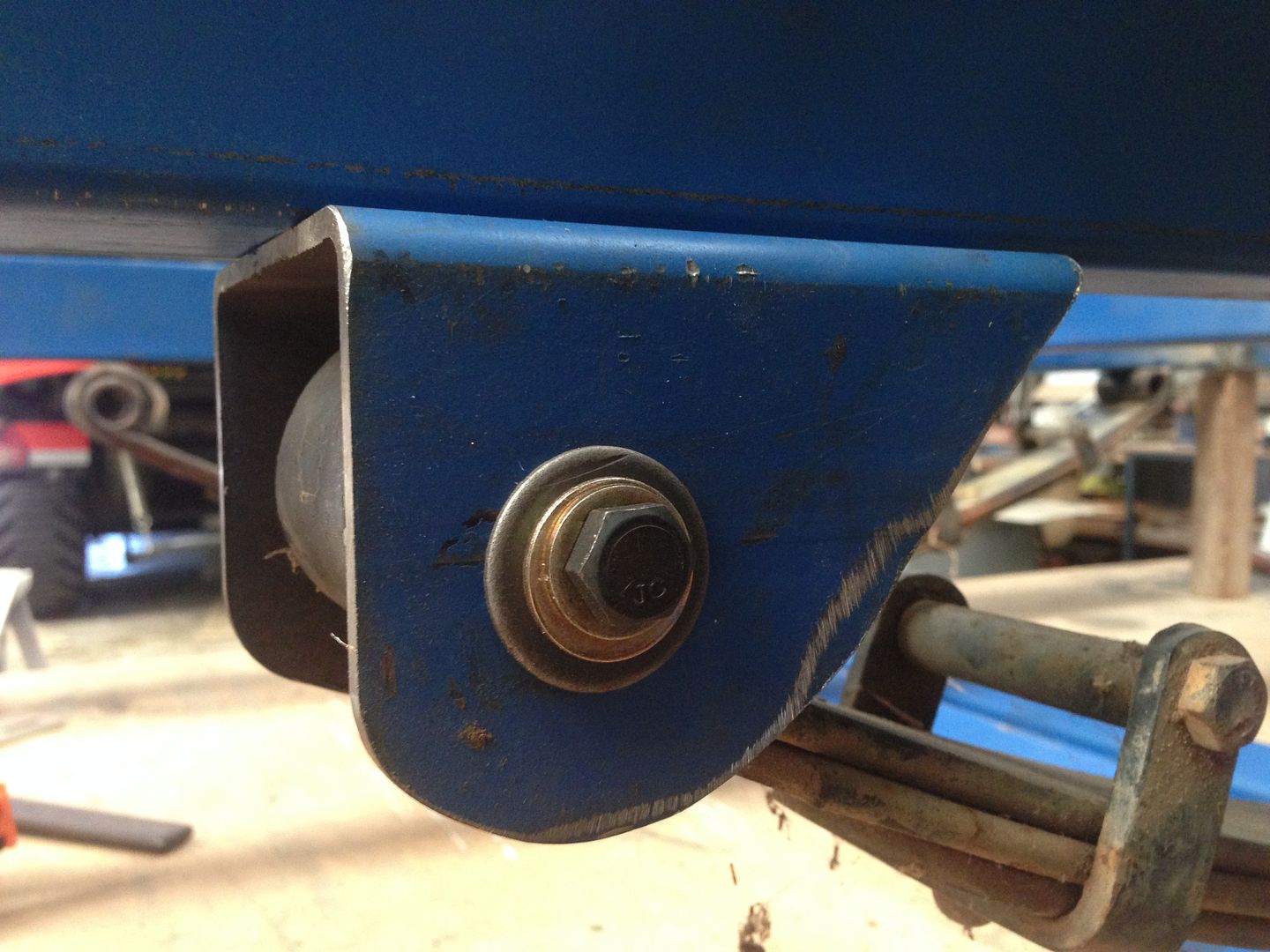

Then I made up some spring hangers for the front of the springs.

Tomorrow I'll get a bit more done & hopfully have the springs all set up.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

edz
Need to get out more
Posts: 2029
Joined: August 2nd, 2008, 1:37 am
Location: On an Island

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by edz » November 1st, 2013, 5:57 pm

Starting to take shape nicely Croozy, Wish I had a garden shed like youres to play in again though .
" WE GO WITH WHAT WE'VE GOT "
" WHAT WE HAV'NT WE GO WITH OUT "

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by croozy » November 1st, 2013, 6:07 pm

Thanks edz, I can't take credit for the shed though but it is the father inlaws though.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey

croozy
Need to get out more
Posts: 2872
Joined: July 25th, 2007, 8:04 pm

Re: My scratch built 40 series trailer. ( project TOW40 )

Unread post by croozy » November 2nd, 2013, 8:16 pm

Well here's today's effort. I spent 4 hours running around town getting all the stuff I needed before the shops shut at lunch time & that way I could just get into it without stopping.
My aim for today was to get the chassis almost finished & the suspension in.

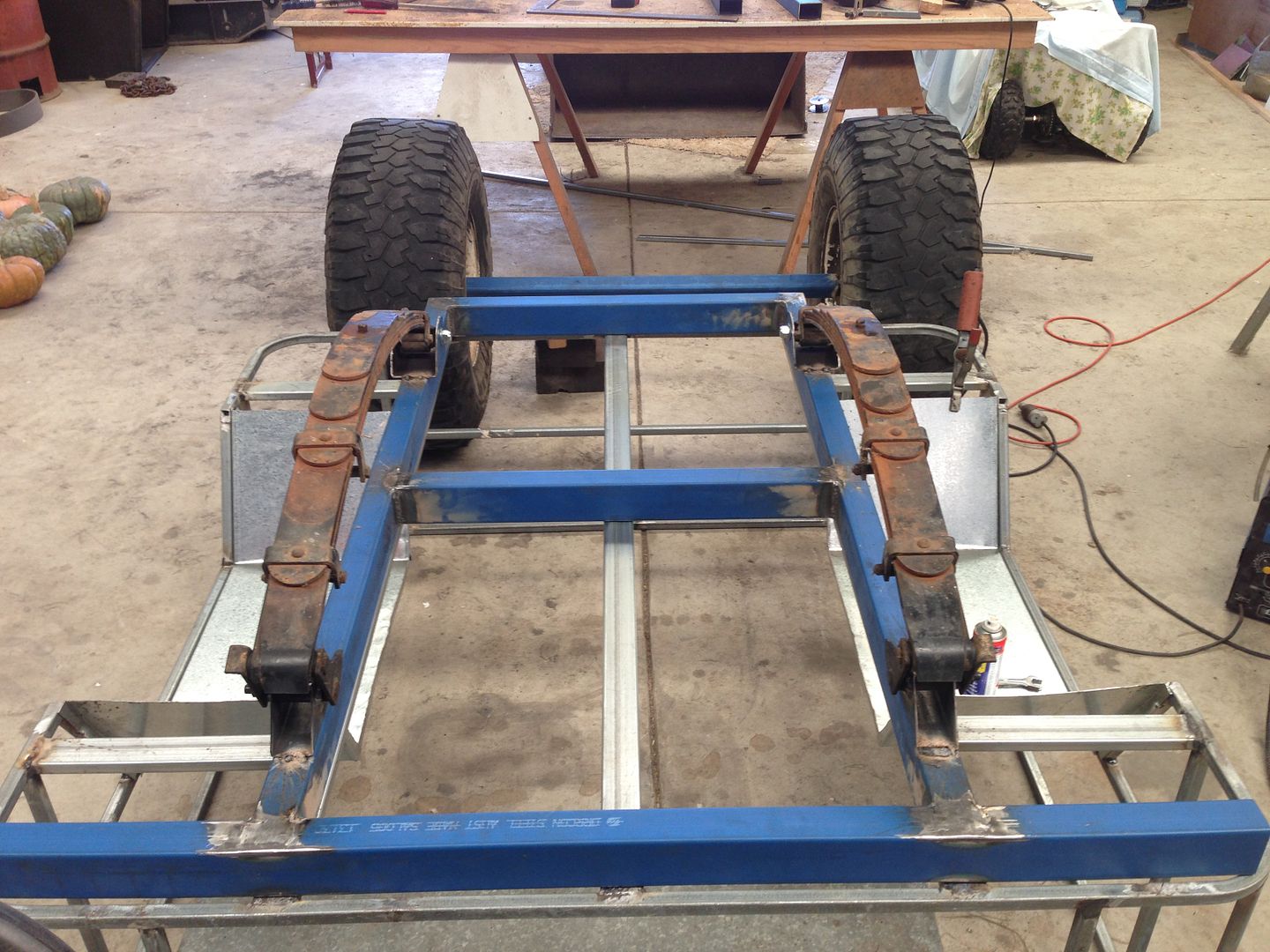

After measuring, checking & then measuring & checking again......& again. I set the springs into position.


I had it set up with the spring on the axle to make measurements for drilling the axle to fit on th springs & then later took it back to spring under, cut the axle to length & tacked the stubs in.

Last edited by croozy on November 2nd, 2013, 9:43 pm, edited 3 times in total.
I just got lost in thought. It was unfamiliar territory.

HAVE A GANDA AT MY SHED
http://www.4wdaction.com.au/gallery/21984-crikey
